Available Options
- RO membranes available with brands of Filmtec, Hydranautics, Vontron, and Toray
- FRP membrane vessel
- Grundfos multistage pump
- CNP multistage pump
- Concentrate recycling flow meter
- Provision for CIP

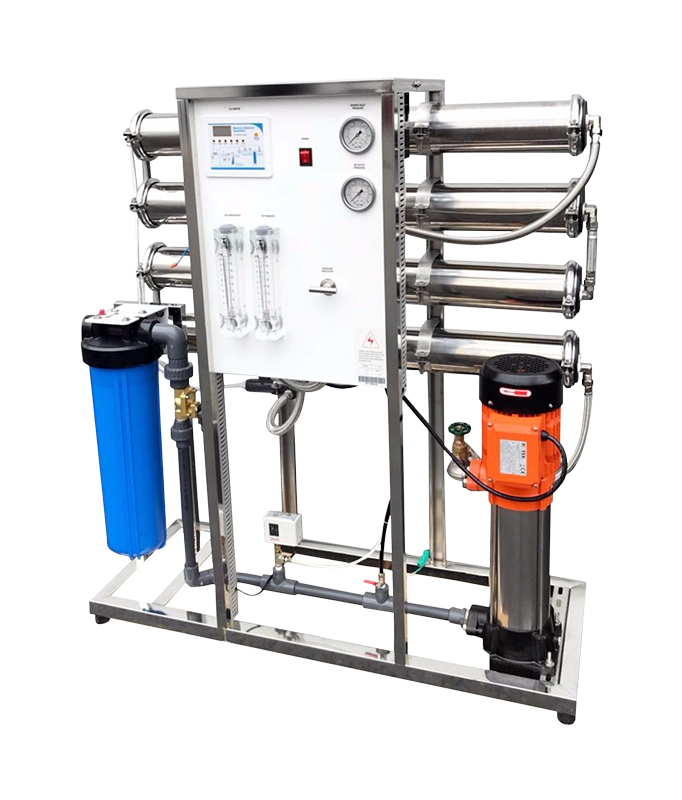

Standard Features Of The Reverse Osmosis
- Reverse Osmosis micro-computer controller with permeate TDS readout
- 300PSI stainless steel membrane housing+PE end caps
- NUERT rotary vane pump for 800GPD
- ROTEK LPE multistage pump for 1500-8000GPD
- 5-micron sediment pre-filter x 2 in series
- Rotek rotameters for permeate and concentrate stream
- Rotek pressure gauges for prefilter feed and RO feed
- Low-pressure switch
- SS316 concentrate needle valve
- Concentrate recycling valve (without flow meter)
- The electro-plated SS304 skid frame
| Models | RA 8000 |
|---|---|
| Feed Water TDS | <1500ppm |
| Recovery Rate* | 50-75% |
| Vessel Array | 1:1:1:1 |
| Vessel Size | 4040 x 4 |
| Permeate Flow Rate (GPM/lpm)** | 4.2/15.8 |
| Feed Connection | 3/4″ FNPT |
| Permeate Connection | 1/2″ |
| Concentrate Connection | 1/2″ |
| Flush Connection | 1/2″ |
| Pump type & Motor HP | Multistage 2HP |
| Gross Dimension (cm) | 69X63X147 |
| Gross Weight (kg) | 100 |
* Minimum recovery rate is calculated based on no concentrate recirculation, it is possible to increase the overall recovery rate by increasing the concentrate circulation flow.
** Permeate flow rate can vary depending on the type of membrane, raw water quality, and recovery rate.
We are specialized in accommodating our customers with RO System Controller Taiwan. We take responsibility for the reliability of our RO System Controller which is outlined with the quality specification.
The RO System Controller is robust in its construction and capable enough to perform for a long time in an efficient way. All these controllers are provided in the best dimensions and fully scrutinized on precise parameters. You can rest assured that you are in the safest hand as we ensure the quality performance of our RO System Controller.
RO System Controller comes with an Adjustable Switch and fully Equipped and Customizable options that can make it easy to use. Apart from that, they are factory tested and preserved, backed by a 1-Year limited warranty. These controllers maintain essential natural minerals and deliver clean and pure drinking water. It is easy to control and install too.
